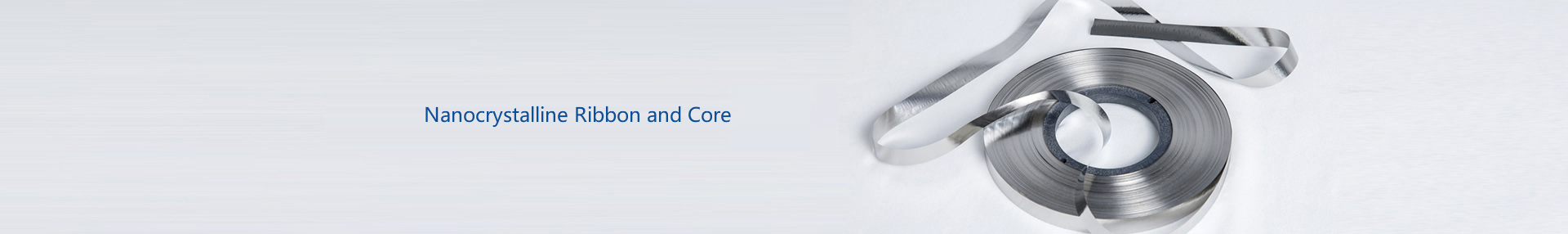

Nanocrystalline Ribbon and Core
Nanocrystalline Ribbon and Core
The Fe-based nanocrystalline ribbon is produced by ultra-rapid solidification technology from molten steel with a cooling rate of about 106 m/s. Compared with traditional materials, it has high magnetic permeability and low loss, and is an excellent soft magnetic material. It can replace ferrites as a common mode choke, electronic transformer, etc., which can greatly improve the efficiency of the transformer, reduce the size, reduce the loss, and reduce the costs. It can also be applied to emerging fields such as automotive electronics and wireless charging. The company is the first domestic company to achieve mass production of ribbon thickness of 14μm.
Nanocrystalline Ultra-thin Ribbon Physical Properties

Curie Temperature

Crystallization Temperature

Saturation Magnetostriction

Density

Resistivity

Operating Temperature Range

570℃

520℃

<2×10-6

7.2g/cm3

130μΩ·cm

-50℃~180℃

Nanocrystalline Ultra-thin Ribbon Magnetic Properties

Initial Permeability μi

Coercivity Hc

Core Loss P 100kHz0.1T

Saturation Magnetic Induction Strength Bs

Remanence Br

Operating Temperature Range

8×104

0.8A/m

20W/kg

1.25T

0.5~0.8T

-50℃~180℃

Nanocrystalline Ultra-thin Ribbon Thickness and Width Specifications
Strip Thickness Specifications
YNB20
19±1μm
YNB18
17±1μm
YNB16
15±1μm
YNB14
13±1μm

Strip Width Specifications
YNB092YD
92±0.5mm
YNB102YD
102±0.5mm
YNB122YD
122±0.5mm

Application of Nanocrystalline Core

Nanocrystalline core is made of nanocrystalline ribbon through winding, annealing, impregnation and cutting. Common mode choke, current transformers and other products made from nanocrystalline cores are mainly used in household appliances, consumer electronics, photovoltaic inverters, new energy vehicles, smart power grids and other fields.


File download


Selection Manual of Amorphous Nanocrystalline Magnetic Core

Browse onlineDownload
